Our Grid Network

Moving Power Connecting Pakistan

Electricity travels through connected substations and transmission lines before local distribution networks deliver it to consumers. National Grid Pakistan operates the high-voltage network at the heart of this journey.

Explore Our Operating Regions

Follow The ConnectionSelect a stage to explore

Transmission

NGC’s high-voltage AC lines form the transmission backbone. They carry bulk electricity between generating areas, regional connections and major grid substations.

Simplified AC electricity journey. Substations connect the network and change voltage at different stages.

The Network In Numbers

Network Overview

Explore the infrastructure behind Pakistan’s electricity transmission.

Two Voltage Levels, One Connected Network

The 500 kV backbone moves bulk electricity over long distances. The 220 kV network connects regional load centres.

Explore Ten Years Of Growth →

By Region

Explore The Network By Region

See key grid stations, transmission roles and national grid connections in each operating region.

Central Punjab network

Operating Region

Lahore Network

The Lahore region serves cities, industry and agriculture across central Punjab.

20220 kV grid stations

6500 kV grid stations

Key Grid Stations And Connections

Bund RoadGakkharSialkotKala Shah KakuRaviNew Kot LakhpatSarfraz NagarNishatabadJaranwala RoadLudewalaWapda TownNew ShalamarGhazi RoadGujratOkaraKassowalSamundri RoadBandalaToba Tek Singh

Network Highlights

Lahore-area stations connect through Sheikhupura, Kala Shah Kaku and New Lahore corridors.
Faisalabad, Sialkot, Gujrat and Okara are served through a dense 220 kV station network.
Some stations use gas-insulated switchgear (GIS), which houses switching equipment in a compact, insulated enclosure.

Ten Years Of Development

Growth Over Time

Explore how the AC transmission network has expanded.

2025–2670,910 MVA

MVA

020,00040,00060,00080,000

Select a year to explore its figures. Includes the AC network only.

Energy And Demand

Power Through The Years

Explore annual delivery and the demands placed on the network.

2025–26130,441GWh

Energy Transmitted

GWh

050,000100,000150,000

Network Expansion

The Network Towards 2029

2026 Existing System70,910MVA

Reported transformation capacity

765 kV

—

500 kV

29,100

220 kV

41,810

±500 kV HVDC

—

View Voltage-Level Figures

2026 existing system
Voltage	Substations / Converters	Capacity (MVA)	Lines (Circuit-km)
765 kV	—	—	—
500 kV	20	29,100	9,686
220 kV	50	41,810	12,077
±660 kV HVDC	2	—	886
±500 kV HVDC	—	—	—
Total	70	70,910	23,535

A dash means no figure is available. Future figures describe planned infrastructure.

Generation Context

The Installed Generation Mix

36,397 MW total installed capacity reported in the presentation. These are generation categories, not NGC-owned generation assets.

IPPs Thermal16,443MW · 45%

Reliability Indicators

T-SAIFI and T-SAIDI measure the frequency and duration of transmission interruptions. They are not an uptime percentage.

2025–26 0.1

index

00.050.10.15

Grid Development

Building The Network
For What Comes Next

Explore the work behind equipment renewal, stronger transmission links and new connections.

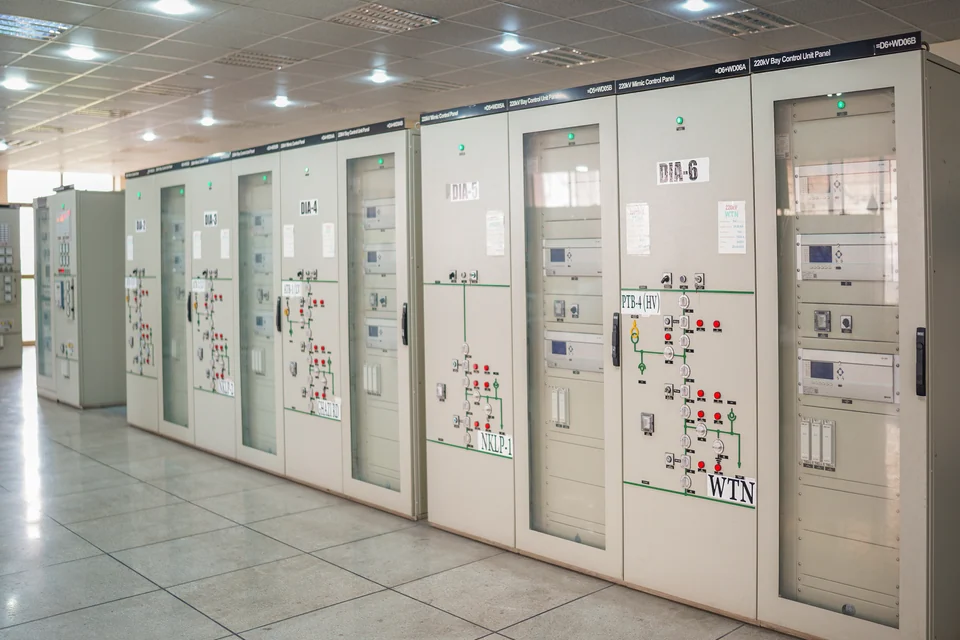

Control cabinets arranged along a bright equipment room

Renew & Improve

Grid Modernisation

Equipment renewal supports the continued service of existing substations. Protection and monitoring help technical teams identify faults and manage asset condition.

Equipment renewal
Protection systems
Monitoring & control

Field operations

Skilled Hands And Essential Connections

Inspection, maintenance and operational coordination keep the transmission network working, day and night.

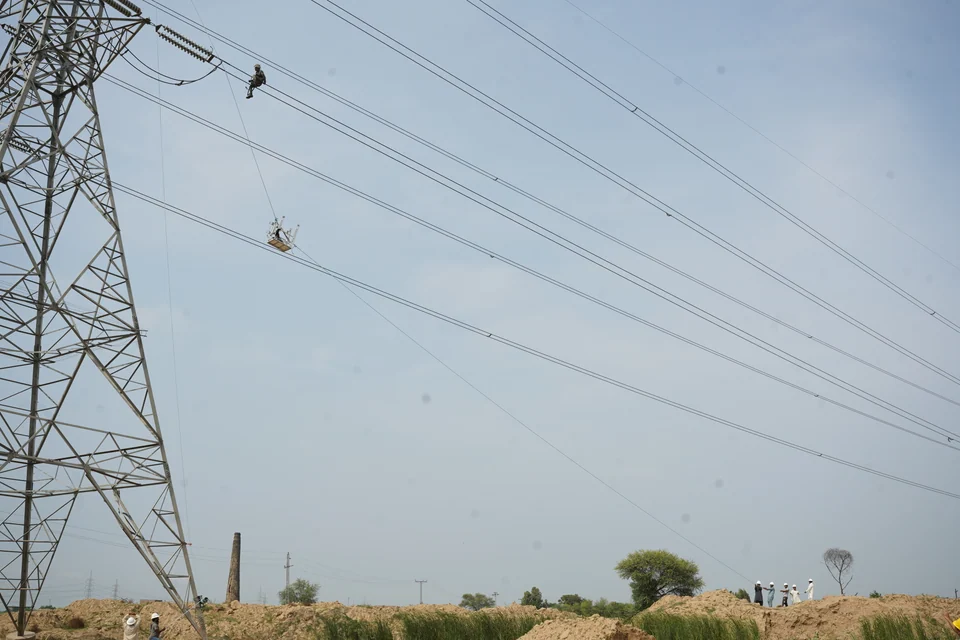

Field teams inspect towers, conductors and substation equipment for signs of wear or damage. Their findings guide repairs and equipment renewal, while protection and monitoring systems help teams identify faults.

Work on high-voltage assets requires planning and coordination. Maintenance teams and network operators organise access and outages so that essential work can be carried out safely.
